Description:
The DSC-R405 is an extremely linear PIN + Amplifier balanced optical receiver suited for a variety of digital and analog applications. The R405 offers a linear response to > 0 dBm optical input, > 0.6Vp-p of linear output voltage, +5dBm of RF output power and a differential conversion gain of 300 V/W. The R405 is available in two bandwidth versions (14 and 20GHz) and two package choices: single-ended K-connector, & differential GPPO RF outputs.
Fig1: DSC-R405 Linear Balanced Photoreceivers with Lab Buddy

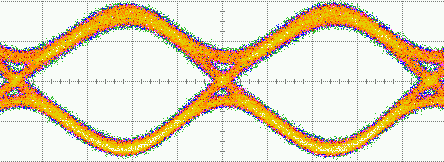

Fig2: DSC-R405 10.7 Gb/s RZ-DPSK Eye Diagram
In: -3 dBm average optical power per photodiode
Out: 400 mVp-p
Salient Features:
- Industry leading 10G OSNR performance
- Linear gain to > 0 dBm optical input
- Linear single-ended output voltage of > 0.6Vp-p
- Wide RF bandwidth of 14 or 20 GHz
- High Responsivity at 1310nm, 1550nm & L-band
- High Dynamic Range
- Well-matched fiber lengths, responsivity & RF response
- Low optical PDL @ 1550nm (typically 0.05dB)
- K-connector or GPPO package options
- Meets GR-468 reliability standard
- Clock and Data Recovery (CDR)
Applications:
- DPSK/DQPSK: Differential Phase/Polarization Shift Keying or Differential Quadrature Phase Shift Keying
- Rapid Doppler-shift LIDAR measurements
- Coherent Lightwave Systems
- RF over fiber (RoF)
- OFDM
- Laser RIN cancellation
Available Models:
- DSC-R405 - Linear Balanced Photoreceivers 14 GHz Bandwidth with Optional CDR
- DSC-R405ER - Linear Balanced Photoreceivers with 20 GHz Bandwidth

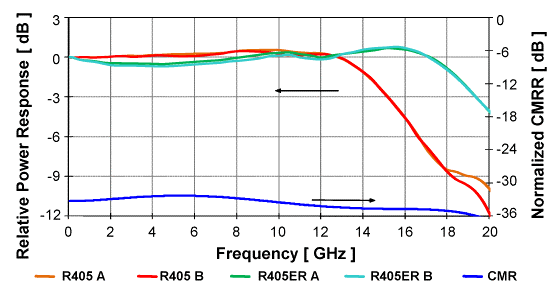

Fig3: Typical Frequency Response Curves & Common Mode Rejection
