10 Gb/s Digital 2-R PIN Optical Receivers

Home >> 10G >>

Description:

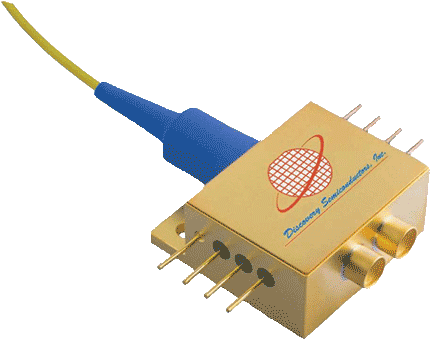

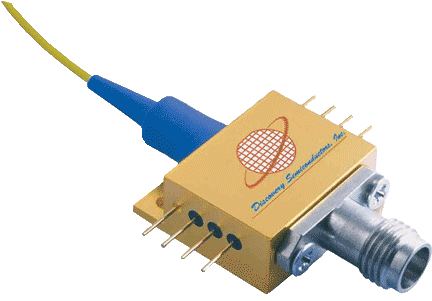

Using the 2-R functions receive and regenerate in a pigtailed 8-pin butterfly package, this low-noise module saves system designers board space while improving performance and reliability. Our DSC-R601PIN model provides a type K coaxial RF output and has a single-ended limiting amplifier providing a constant ~350 mVp-p to following stages with optical input powers from -20 to +0 dBm. Our DSC-R602PIN model provides dual sub-miniature coaxial outputs and has a differential limiting amplifier providing a constant ~700 mVpp to following stages with optical input powers from -20 to +0 dBm. The InGaAs Photodiode is ideal for 1330 and 1550 nm systems.

Salient Features:

High Sensitivity: -19 dBm typical @ 10 Gb
Useable spectral wavelength range of 800 – 1650 nm
8-pin butterfly package with type K coaxial RF output for R601PIN model and push-on GPPO/SSMP compatible RF outputs for R602PIN model
Differential output for twice the voltage output swing (only available in model R602PIN)
User selectable decision point (V_adj)
Small footprint & high reliability
Hermetically sealed
One device for multiple wavelengths reduces operational and inventory costs

Applications:

DWDM Systems
SONET/SDH Systems
Test & measurement analyzers
10 Gb Ethernet

Available Models:

DSC-R601PIN - Single-ended 10 Gb/s Digital 2-R PIN Optical Receivers
DSC-R602PIN - Differential 10 Gb/s Digital 2-R PIN Optical Receivers

(PIN or APD) + TIA + LIM Digital Optical Receivers

Sensitivity Curve at 1550 nm:
DSC-R601PIN & DSC-R602PIN Sensitivity Curve at 1550 nm

DSC-R601PIN and DSC-R602PIN Lab Buddy. For busy test stations or student labs, where users of different experience levels might be handling high value opto-electronics that are easily damaged by mishandling, order your photodiode to be mounted in the Lab Buddy

For busy test stations or student labs, where users of different experience levels might be handling high value opto-electronics that are easily damaged by mishandling, order your photodiode to be mounted in the Lab Buddy.
